    「沈阳电动提升门」厂房滑升门的结构组成

    作者:沈阳厂房电动提升门   发布时间: 2019/7/26 9:57:18

  •

    「沈阳电动提升门」厂房滑升门的结构组成


    Structural Composition of Sliding Door of Shenyang Electric Lifting Door Workshop






    问:提升门由哪些结构组成?


    Question: What structure does the lifting door consist of?


    答:工业提升门是现代工业厂房的专用门,它以门板组成主要门体,通过上升、下降运行完成对工业厂房门的开启、关闭控制,同时满足现代工业厂房所要求的降噪、隔音、保温、保湿、密封等效果。


    Answer: Industrial lifting door is the special purpose of modern industrial plant. It consists of door panels. It can control the opening and closing of industrial plant door by lifting and descending operation. At the same time, it meets the requirements of modern industrial plant for noise reduction, sound insulation, heat preservation, moisture retention and sealing.




    沈阳保温提升门厂家



    工业提升门由哪些结构组成?工业提升门由门体、配件、平衡系统、安全装置等多个结构组成,不同结构的部件要求也不一样,如下工业提升门结构图所示:


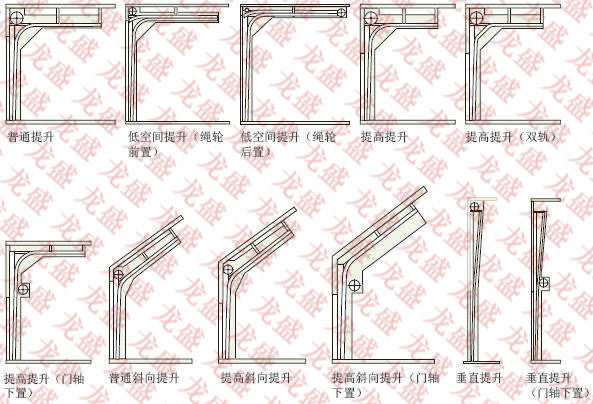

    What structure does the industrial lifting door consist of? Industrial lifting door is composed of door body, fittings, balance system, safety device and other structures. The requirements of components of different structures are different, as shown in the structure diagram of industrial lifting door below.


    「沈阳电动提升门」厂房滑升门的结构组成


    Structural Composition of Sliding Door of Shenyang Electric Lifting Door Workshop


    下面,「沈阳电动提升门」龙盛门业在详细的给大家介绍工业提升门的各个结构部件:


    Next, "Shenyang Electric Hoist Gate" Longsheng Gate Industry in detail to introduce the various structural components of the industrial hoist door:


    1、门板


    1. Door panel



    工业提升门的门体主体为门板,它的组成是双层彩钢板内填充聚氨酯发泡组成的,门板常规厚度为40MM彩钢板的厚度为0.5MM,门板表面经过压纹处理,美观大方。


    The main body of industrial lifting door is door plate, which is made up of polyurethane foam filled in double-layer color steel plate. The conventional thickness of the door plate is 40MM color steel plate, which is 0.5MM thick. The surface of the door plate is embossed, beautiful and generous.



    沈阳厂房提升门安装




    在门板两侧安装铰链位置设有连续钢带,以保证铰链牢固安装。


    ontinuous steel bands are installed at the hinge positions on both sides of the door plate to ensure the solid installation of the hinges.


    若电动提升门高度超出5m以上的,每块门板的内侧面设置一条高80mm加强筋,可以保证门板有抗十二级以上的抗风强度。


    If the height of the electric lifting door exceeds 5 meters, a 80 mm stiffener is installed on the inner side of each door panel, which can ensure that the door panel has wind resistance strength of more than 12 grades.


    2、安全装置


    2. Safety devices



    安全装置亦是工业电动提升门必备的配置之一,一般来说现在的工业提升门都配备有三重安全保护装置:一是提升门的底部设有安全气囊;


    Safety devices are also one of the necessary configurations of industrial electric lifting doors. Generally speaking, the industrial lifting doors are equipped with three safety protection devices: first, the bottom of the lifting door is equipped with a safety airbag;


    二是在提升门的底部两端设有刀片式钢丝绳断裂保护器,阻止门体坠落。


    The second is that a knife type wire rope breaking protector is installed at both ends of the bottom of the lifting door to prevent the door from falling.


    三是在门体的下方两端设有红外对射装置,一旦红外光束被挡住,门体立即向上返回,直到开门位置。


    Third, there are infrared counter-fire devices at both ends of the lower part of the door body. Once the infrared beam is blocked, the door body immediately returns upward until the opening position.


    安全装置的主要作用是:防坠落装置、安全气囊(可选),防止门体下坠或门底部与障碍物相碰时,门则自动停止或反向运行,免事故发生;


    The main functions of the safety device are: anti-falling device, airbag (optional), to prevent the door from falling or when the bottom of the door collides with obstacles, the door automatically stops or runs backward to avoid accidents;


    防钢丝绳断裂装置、扭簧断裂安全装置。防止任何方式的门体伤害人、物的可能。


    Anti-wire rope breaking device and torsion spring breaking safety device. Prevent the possibility of hurting people and things by any way.


    3、平衡系统


    3. Balance System



    平衡系统主要是采用扭簧平衡,平衡扭簧根据门重负荷软件计算而设计制作的扭簧,使平衡达到最佳状态,在平衡轴上装有扭簧断裂保护装置。


    The balance system mainly adopts torsion spring balance. The balance torsion spring is designed and manufactured according to the calculation of the door heavy load software, so that the balance reaches the best state, and the balance shaft is equipped with torsion spring breaking protection device.


    平衡系统作用:该装置能在平衡扭簧断裂时,防止门板坠落;提升绳轮为铝质柱形绳轮。


    Equilibrium system function: the device can prevent door panel from falling when the balance torsion spring breaks, and the lifting rope wheel is aluminium cylindrical rope wheel.


    4、其他配件


    4. Other accessories



    门板连接铰链为热镀锌冷轧钢板冲压制作。材料厚度δ=2.0mm,镀锌厚度大于28µm。


    The door plate connection hinge is made of hot-dip galvanized cold-rolled steel sheet by stamping. The thickness of the material is 2.0 mm and the thickness of galvanizing is more than 28 M.


    导轨为δ=2mm热镀锌钢板辊压制作的3英寸工业门专用导轨;导轨截面形状带有防脱钩,以确保导轮在导轨内平稳运行;


    The guide rail is a 3-inch special guide for industrial doors made by hot-dip galvanized steel rollers with a cross-section shape of anti-decoupling to ensur

    e the smooth operation of the guide wheel in the guide rail.


    导轨护板为δ=2mm热镀锌钢板辊压制作,护板上设有门侧密封橡胶的插槽及与导轨连接的安装孔;


    The guide rail guard plate is made of hot-dip galvanized steel sheet roll with a groove for sealing rubber at the door side and an installation hole connected with the guide rail.


    导轮采Φ72mm工业门专用导轮,导轮材料为耐磨尼龙,内含滚轮轴承、运行平稳、无噪音。


    The guide wheel adopts special guide wheel for 72mm industrial door. The material of the guide wheel is wear-resistant nylon. It contains roller bearings. It runs smoothly and has no noise.


    其余五金配件均采用热镀锌钢板冲压制作,尺寸准确,互换性好。


    The other hardware fittings are made by hot-dip galvanized steel sheet stamping, with accurate size and good interchangeability.



    沈阳电动滑升门提升结构



    门板均采用0.4mm镀铝锌彩色钢板,采用防夹手设计板型,厚度为40mm,高度为500mm 表面烤漆处理,厚度为25~30μm ,门板发泡密度≥42kg/m3,发泡材料采用聚氨酯环保型门板系统料


    The door panels are all made of 0.4mm aluminium-galvanized colour steel plates with anti-splint design. The thickness is 40mm and the height is 500mm. The thickness is 25-30um. The foaming density of the door panels is more than 42kg/m3. The foaming materials are polyurethane environment-friendly door panels.
